Aluminum Rim Wheel Exchange
PT24T/13 Tandem Axle Trailer for 22’-24’ pontoons
19’ bunks 28 overall lenth
Capacity w/o brakes 4020 lbs w/Brakes 5020 lbs
Chrome diamond plate on the winch stand, steps, tail lights, and fenders. 12” pieces on the front frame and small pieces on the tail light bracket. Diamond plate really stands out on the black trailer.
PT26T/13 Tandem Axle Trailer for 25’-27’ pontoons
20’ bunks 30’ overall length
Capacity w/o brakes 3940 lbs w/Brakes 4940 lbs
Load Guides (Set of 4)
No Brakes
Your tow vehicle stops the load
Spare Tire w/mount -13"
Plastic Bunk Wrap
1-Disc
Stops 3500 lbs.
Two-3500 lb. axle
4” box steel frame with baked-on powder-cote finish
2” coupler
1500 lb. dual wheel swing away tongue jack
Front loading 3200 lb winch stand with steps and a handrail
Steel fenders with steps
13” radial tires Galvanized wheels (Upgraded from standard painted)
Up to 5000 lb. carrying capacity
Bunks adjust for pontoons 6’ to 8’ 6” wide
Submersible LED lighting with tail lights in protective cages
24’ and 26’ models have “ultra” reinforced bow and stern with 5 cross members trying the side frames together
Rubber backed carpeting over 2” x 4” wooden bunks
Includes all required D.O.T. equipment; lighting, chains, etc. required for the USA and Canada.
PT20T/13 Tandem Axle Trailer for 18’-21’ pontoons
15’ bunks 24’ overall lenth
Capacity w/o brakes 4050 lbs w/Brakes 5050 lbs
Mid-America

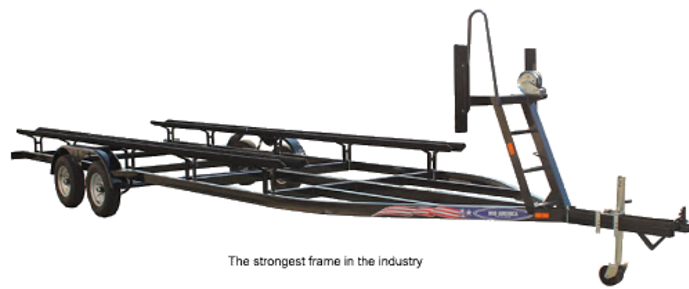

Tandem Axle Flote-On Pontoon Trailers
Some triple tube pontoons (Bennington, Manitou, South Bay) have center tubes and engines that extend 2’ to 4’ beyond the back of the pontoons. When traveling, the longer center tube and engine should be supported. Additional framework attached to the back extends the frame to support the longer center pontoon. This is especially important on boats with larger engines that extend beyond the back of the boat. .
Add on Options
Models
Triple Tube “Extended Frame” Option
2-Disc
Stops 7000 lbs.

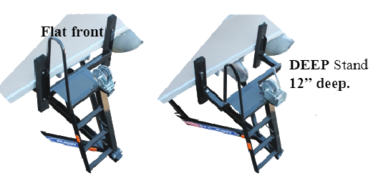

Package consists of bunk support for the center pontoon. A special heavy duty Winch stand with wider steps, handrail, and extra depth for protruding center tube. The stand itself is heavier steel to accommodate the additional weight of triple tube pontoons and has a #3200 front loading winch
(in lieu of the normal 1500 lb.) to pull on the heaviest pontoon.
We can fit any style: we just need to know the year, make, and model of your boat.
Standard Features
Swing Tongue
Brake Options
Any Mid America trailers can accommodate all brands of triple tube pontoons.
Dress-up Kit
Triple Pontoon Trailer Package
PT22T/13 Tandem Axle Trailers for 20’-22’ pontoons
17’ bunks 26 overall length
Capacity w/o brakes 4040 lbs w/Brakes 5040 lbs
Call for Pricing and availability
810-735-2628
