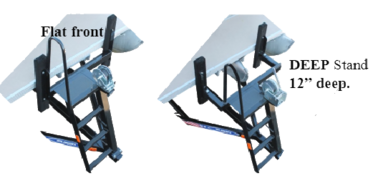

Package consists of bunk support for the center pontoon.  A special heavy duty Winch stand with wider steps, handrail, and extra depth for protruding center tube. The stand itself is heavier steel to accommodate the additional weight of triple tube pontoons and has a #3200 front loading winch
(in lieu of the normal 1500 lb.) to pull on the heaviest pontoon.
We can fit any style: we just need to know the year, make, and model of your boat.

​Plastic Bunk Wrap

Add on Options

Spare Tire w/mount - 12"

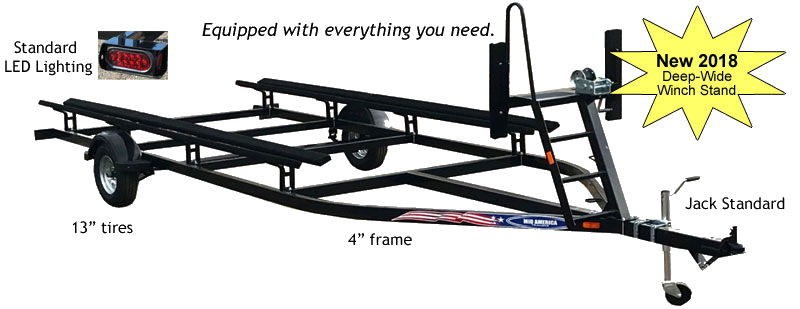

Any Mid America trailers can accommodate all brands of triple tube pontoons.

Single axle model trailers are made for 16’ to 22’ pontoon boats up to 2520 lbs.

These trailers are built with 4"×2"-11 gauge steel tube frames and 3"×2"-14 gauge steel tube cross braces for extra stability and smooth towing.

Powder coat black finish
 Deluxe step with handrail & 3200 lb winch

Folding heavy duty wheel jack with dual wheels

Metal Powder Coat Fenders

Adjustable carpeted bunks from 6’ to 8’ 6” wide

Submersible Led lighting

Custom self-grounding molded wire harness

Protective metal tail light housings with tie down loop

 13” radial tires Galvanized wheels (Upgraded from standard painted)

 3500 lb axles

Ez lube hubs

 4 leaf springs

Includes all required DOT equipment; lighting, safety chains, etc. for the USA and Canada.


Aluminum Rim Wheel Exchange​​

Chrome diamond plate on the winch stand, steps, tail lights, and fenders. 12” pieces on the front frame and small pieces on the tail light bracket. Diamond plate really stands out on the black trailer.

Standard Features

Load Guides (Set of 4)

PT-20/13 Single Axle Trailer for 18’-20’ pontoons
15’ bunks,

24’ overall length

PT-22/13 Single Axle Trailer for 21'-23’ pontoons
17’ bunks

26’ overall length

​Dress-up Kit​​​

Call for Pricing and availability



​Single Axle  Flote-On Pontoon Trailers

Triple  Pontoon  Trailer  Package

Heath`s Harbor exclusive ​

​Standard Galvanized Wheels!
