Two-3500 lb. axle with 5 leaf springs
5”x 2" box steel frame with baked-on powder-cote finish
3" x 2" cross members
Tandem Disk Brake
2” coupler
1500 lb. dual wheel swing away tongue jack
Front loading winch stand with steps and a handrail
Steel fenders with steps
14” Radial tires Galvanized wheels (Upgraded from standard painted)
Ez lube hubs
Up to 5000 lb. carrying capacity
Bunks adjust for pontoons 6’ to 8’ 6” wide
Submersible LED lighting with tail lights in protective cages
Rubber backed carpeting over 2” x 4” wooden bunks
Includes all required D.O.T. equipment; lighting, chains, etc. required for the USA and Canada.
Some triple tube pontoons (Bennington, Manitou, South Bay) have center tubes and engines that extend 2’ to 4’ beyond the back of the pontoons. When traveling, the longer center tube and engine should be supported. Additional framework attached to the back extends the frame to support the longer center pontoon. This is especially important on boats with larger engines that extend beyond the back of the boat. .
PT26THD/14DBJ Heavy Duty Tandem Axle Brake Trailer for 25’-26’ pontoons
20’ bunks 31’ overall length
Capacity 5800
Standard Features
Any Mid America trailers can accommodate all brands of triple tube pontoons.
Call for Pricing and availability
810-735-2628
Dress-up Kit
Triple Pontoon Trailer Package
Mid-America

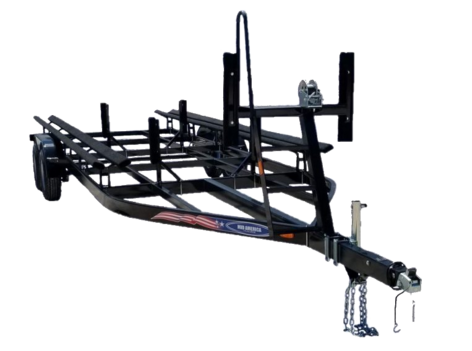

Tandem Axle Heavy Duty Flote-On Pontoon Trailers
PT28THD/14DBJ Heavy Duty Tandem Axle Brake Trailer for 26’-28’ pontoons
23’ bunks 33’ overall length
Capacity 5870
Add on Options
Models

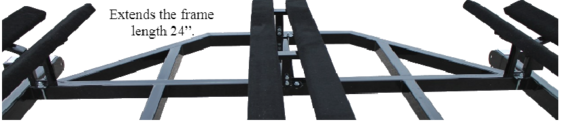

Triple Tube “Extended Frame” Option
PT24THD/14DBJ Heavy Duty Tandem Axle Brake Trailer for 24’-25’ pontoons
19’ bunks 29’ overall length
Capacity 5820
Spare Tire w/mount -13"
Aluminum Rim Wheel Exchange
Chrome diamond plate on the winch stand, steps, tail lights, and fenders. 12” pieces on the front frame and small pieces on the tail light bracket. Diamond plate really stands out on the black trailer.
Load Guides (Set of 4)

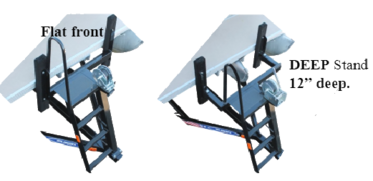

Package consists of bunk support for the center pontoon. A special heavy duty Winch stand with wider steps, handrail, and extra depth for protruding center tube. The stand itself is heavier steel to accommodate the additional weight of triple tube pontoons and has a #3200 front loading winch
(in lieu of the normal 1500 lb.) to pull on the heaviest pontoon.
We can fit any style: we just need to know the year, make, and model of your boat.
Plastic Bunk Wrap
Swing Tongue
